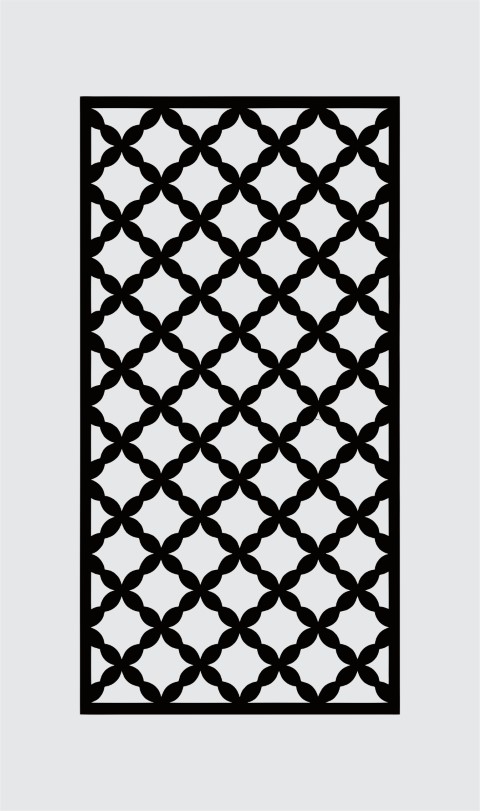

Classic Beaded Diamond Lattice Jali Design – CNC Laser Cut Vector Panel
Description
Enhance your interiors with the understated elegance of this geometric beaded lattice jali panel. This design features a seamless, repeating diagonal trellis where the structural lines are gracefully contoured to resemble linked ovals or beads, framing clean diamond-shaped negative spaces. It is a versatile and timeless choice for crafting stylish room dividers, decorative privacy screens, custom radiator covers, and refined cabinet door inserts. Note: Original image was AI-assisted using Google Flow and Google Gemini. The final artwork has been manually modified, refined, and converted into a vector by us. Credit to Google Flow and Google Gemini for the initial concept.
Specifications
Design Type :Symmetrical Vector / Cut File Template
Orientation :Portrait (Vertical Rectangle)
Pattern Style : Geometric Diamond Lattice, Trellis Pattern, Beaded Grid, Transitional Design
Recommended Processing :CNC Routing, Laser Cutting, Plasma Cutting
Software Support : Compatible with AutoCAD, ArtCAM, CorelDRAW, Adobe Illustrator, and other vector-based CAM/CAD software
Resources Id :DW-4
Other Features
- Optimized for Cutting: The uniform thickness of the gracefully contoured lattice lines ensures consistent structural integrity and smooth, continuous cutting paths for CNC machines, minimizing the risk of fragile weak points.
- Highly Scalable: The straightforward, geometrically repeating diamond grid allows for effortless scaling and seamless tiling, making it perfectly suited for both expansive architectural partitions and small interior details.
- Versatile Application: Its clean yet decorative appearance fits beautifully into both traditional and contemporary settings, making it ideal for wooden space partitions, metal outdoor screens, and elegant false ceilings.
